● Powerful, compact design splits logs in both directions
● Steel log cradles keep split logs from falling to the ground
● Delivers twice as many splits per cycle
● Available with Kohler engine, LCT engine, and Rato engine

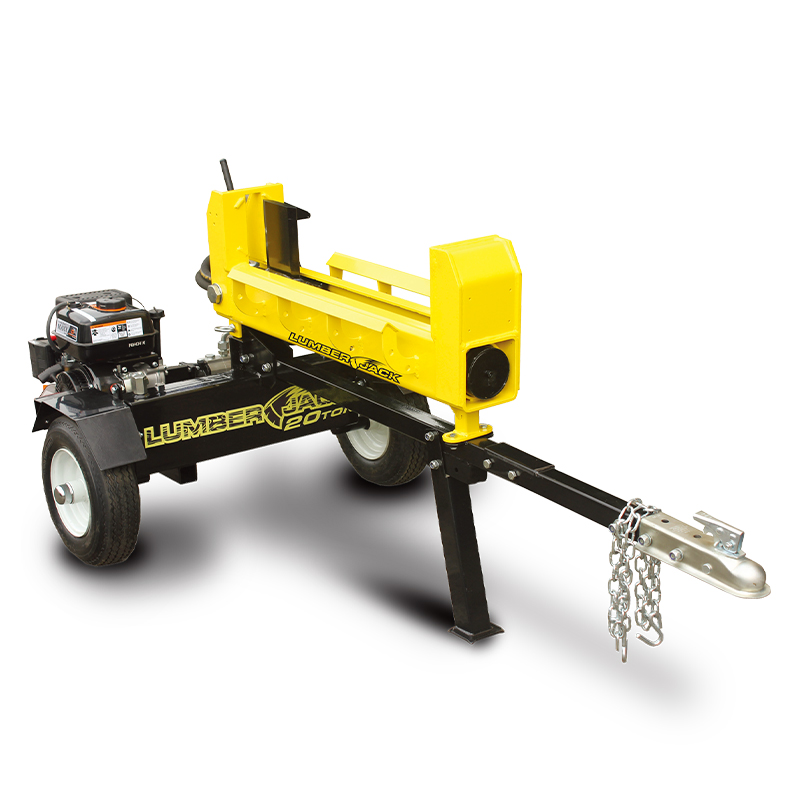

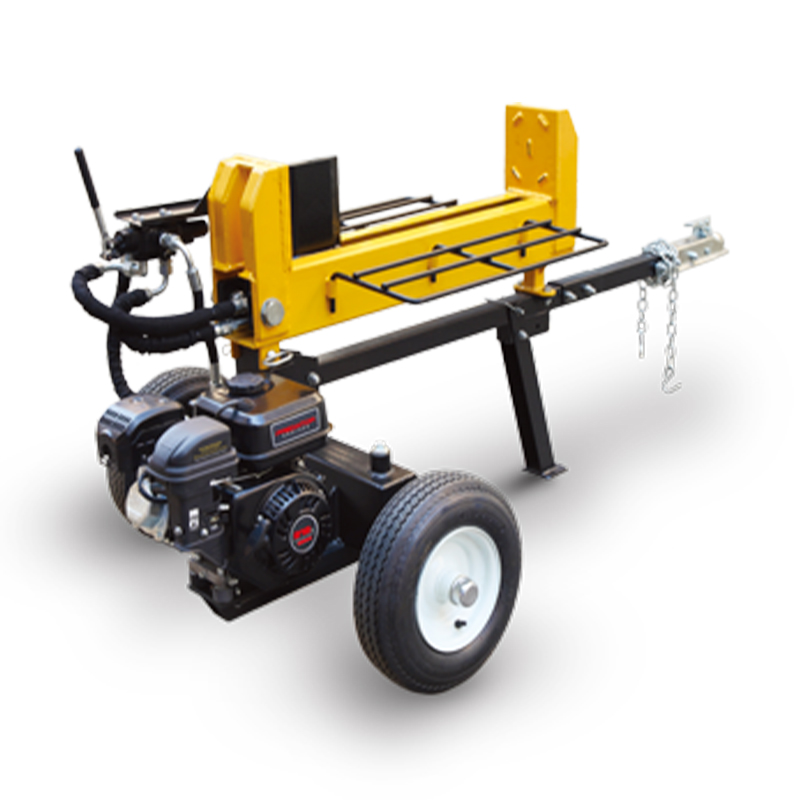

| Model | DS18 | DS20 |
| Max. Splitting Force | 18Ton | 20Ton |
| Cycle Time | 13s | 14s |
| Engine | Briggs & Stratton 208cc | Briggs & Stratton 208cc |
| Max. Log Length | 24 inches (600mm) | 24 inches (600mm) |
| Cylinder (Bore Dia.) | 3-1/2” × 22” | 4” × 22” |
| Pump | 7.8GPM, 2-Stage | 11GPM, 2-Stage |
| Reservoir Capacity | 2.24Gal / 8.5L | 3.17Gal / 12L |
| Wedge | 7.5” Hardened Steel | 7.5” Hardened Steel |
| Wheel | 16” DOT (4.8 - 8) | 16” DOT (4.8 - 8) |
| Filter | Suction Filter | Suction Filter |
| Net/Gross Weight | 358/402LB (163/183KGS) | 403/449LB (183/204KGS) |
| Package Dimensions | 51.9”×26.4”×21.3”(132×67×54cm) | 52.4”×31.5”×20.5” (133×80×53cm) |
| Container Quantity | 104PCS/40’GP | 88PCS/40’GP |
