● Average assembly time is under 35 minutes

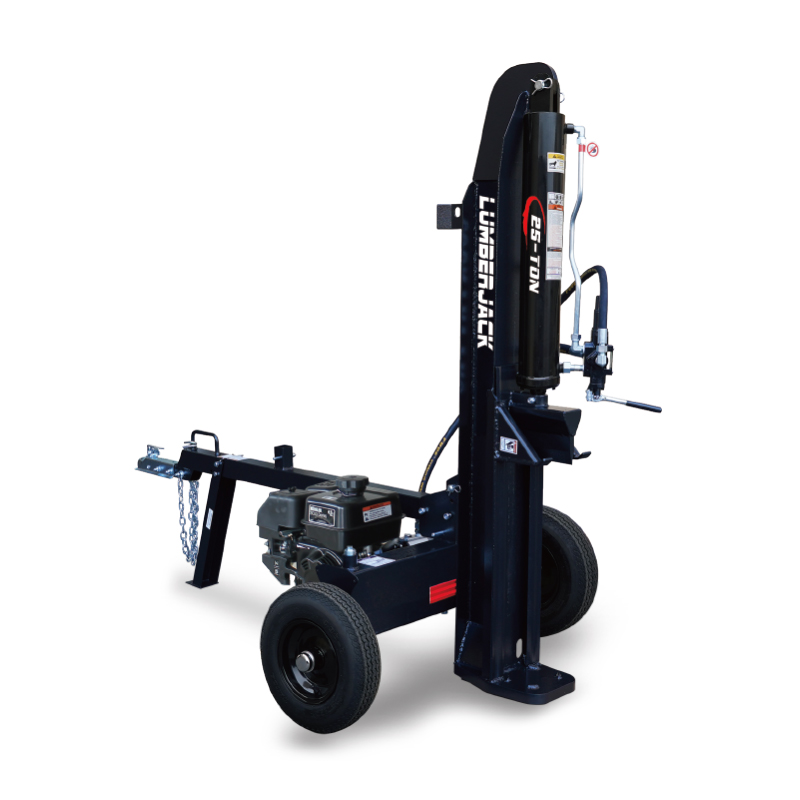

● Accommodates splitting in both horizontal and vertical positions
● Square log cradle for quicker, easier, and safer splitting
● Powerful trouble-free Kohler engine
● Full beam design
● Available with Kohler engine, LCT engine, B&S, and Rato engine
| Model | LSP22B | LSP25B2 |
| Max. Splitting Force | 25Ton | 27Ton |
| Cycle Time | 10s | 11.5s |
| Engine | Kohler 196cc | Kohler 196cc |
| Max. Log Length | 25 inches (635mm) | 25 inches (635mm) |
| Cylinder | 4” × 24-1/2” | 4-1/8” × 24-1/2” |
| Pump | 14GPM, 2-Stage | 14GPM, 2-Stage |
| Hydraulic Capacity | 6.5Gal / 24.6L | 6.5Gal / 24.6L |
| Wedge | 8” Hardened Steel | 9” Hardened Steel |
| Valve | Auto-Return | Auto-Return |
| Wheel | 16” DOT (4.8 - 8) | 16” DOT (4.8 - 8) |
| Filter | Spin-On Replaceable | Spin-On Replaceable |
| Net/Gross Weight | 408/475LB (185/215.7KGS) | 448/521LB (203/236KGS) |
| Package Dimensions | 82.7”×22”×24.4” (210×56×62cm) | 83”×23”×24.4” (211×58.5×62cm) |
| Container Quantity | 84PCS /40’HQ | 80PCS /40’HQ |
