● Square log cradle for quicker, easier, and safer splitting
● Half-beam design
● Available with Kohler engine, LCT engine, B&S, and Rato engine

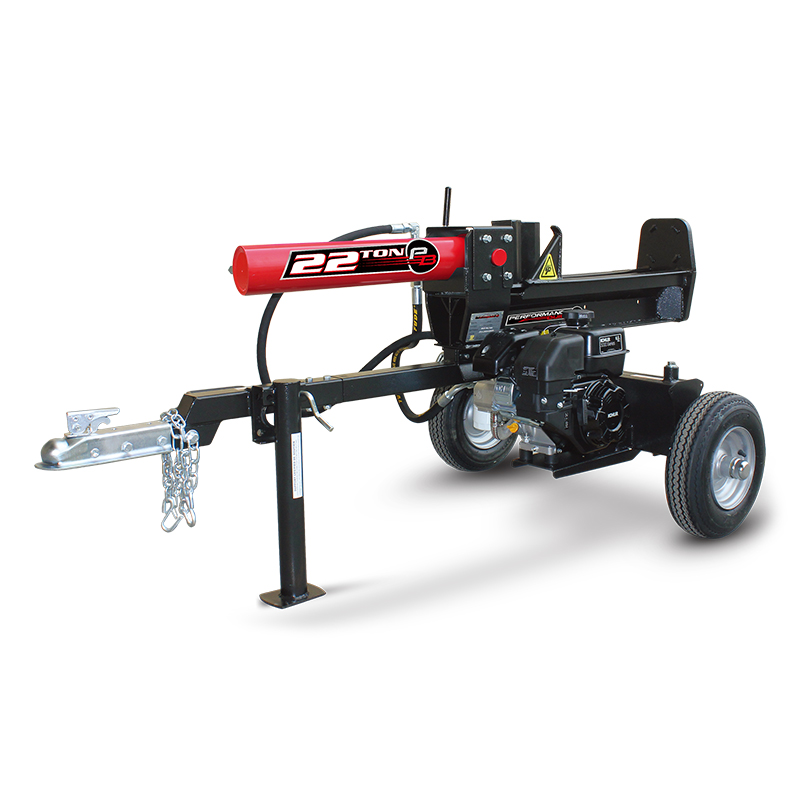

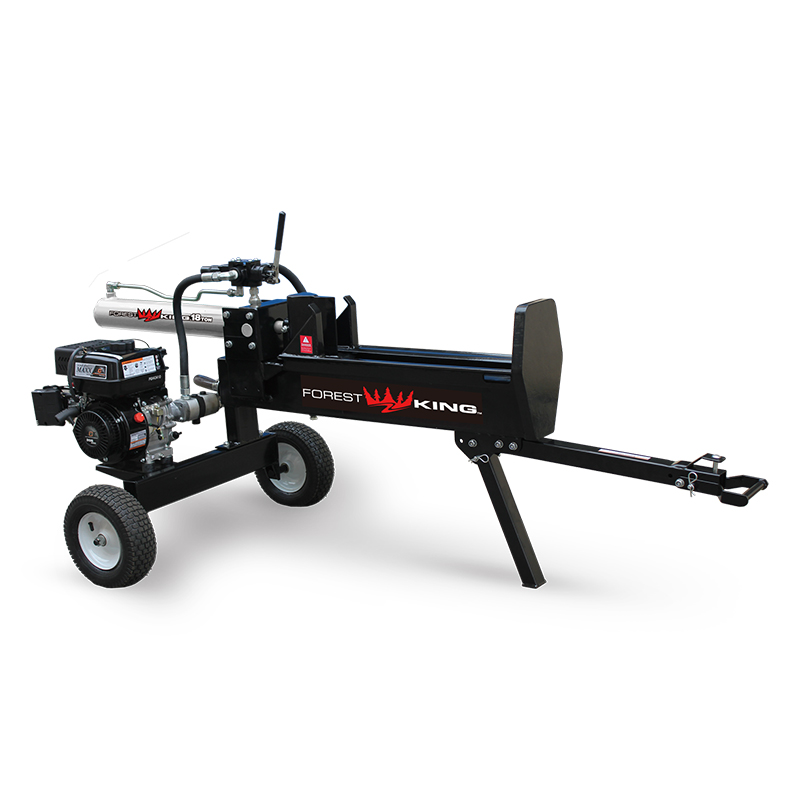

| Model | LSM18 | LSM22A |
| Max. Splitting Force | 18Ton | 22Ton |
| Cycle Time | 14s | 13s |
| Engine | LCT 208cc | Kohler 196cc |
| Max. Log Length | 24 inches (610mm) | 24 inches (610mm) |
| Cylinder (Bore Dia.) | 3-1/2” × 22-5/8” | 4” × 23” |
| Pump | 7.8GPM, 2-Stage | 11GPM, 2-Stage |
| Hydraulic Capacity | 3.3Gal / 12.5L | 6Gal / 22.7L |
| Wedge | 7” Hardened Steel | 7” Hardened Steel |
| Valve | Auto-Return | Auto-Return |
| Wheel | 13”×5.0-6 | 16” DOT (4.8 - 8) |
| Filter | / | Spin-On Replaceable |
| Net/Gross Weight | 320/353LB (145.3/160.3KGS) | 390/445LB (177/202KGS) |
| Package Dimensions | 66.1”×16.3”×27.17” (168×41.5×69cm) | 44.88”×33.46”×20.87”(114×85×53cm) |
| Container Quantity | 105PCS/40’GP | 96PCS/40’GP |
