● Stripper plates
● Built-in log cradle for easier and safer splitting
● New flip-up HD stand with spring-loaded lock
● Spring-loaded beam lock
● Vertical and horizontal operation
● Auto-return valve
● Log catcher included

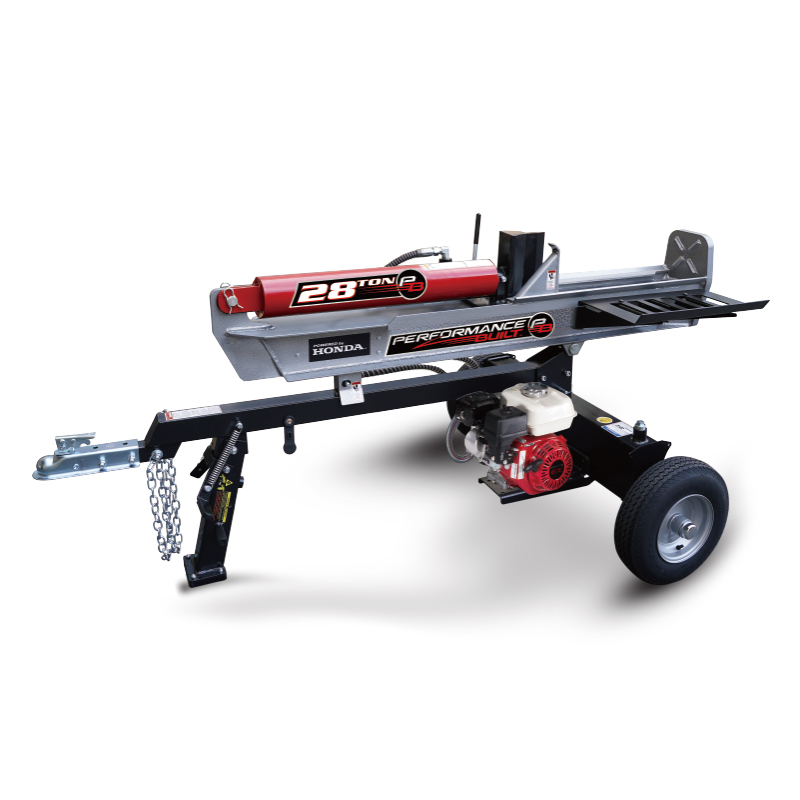

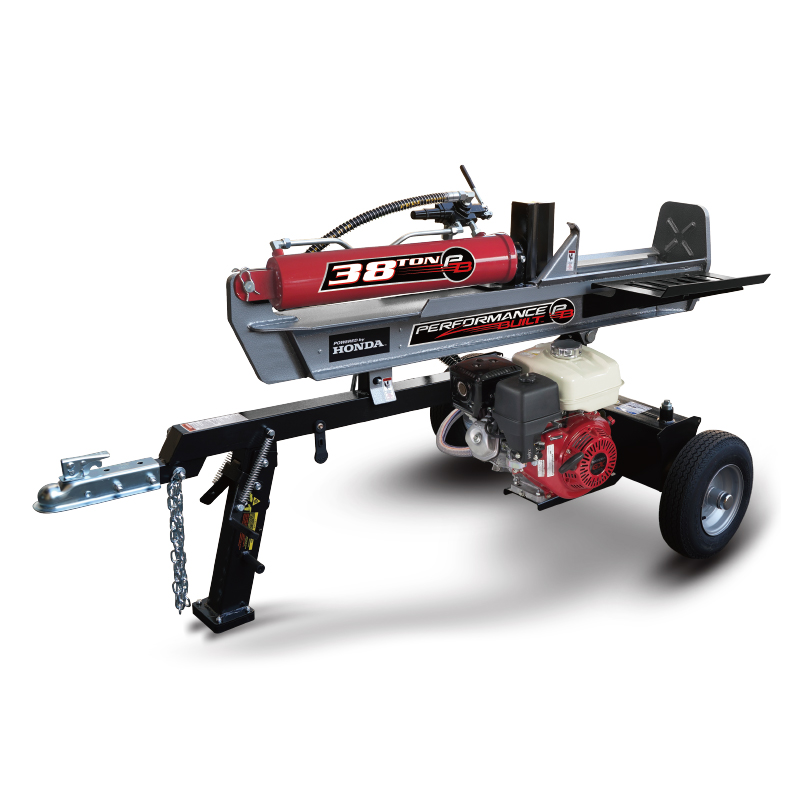

| Model | LSP2801 | LSP3801 |
| Max. Splitting Force | 28Ton | 38Ton |
| Cycle Time | 11.5s | 14s |
| Engine | Honda GX200 | Honda GX270 |
| Max. Log Length | 25 inches (635mm) | 25 inches (635mm) |
| Cylinder | 4-3/8” × 24-1/2” | 5” × 24” |
| Pump | 14GPM, 2-Stage | 17GPM, 2-Stage |
| Hydraulic Capacity | 5.55Gal / 21L | 7.13Gal / 27L |
| Wedge | 9” Hardened Steel | 10” Hardened Steel |
| Valve | Auto-Return | Auto-Return |
| Wheel | 16” DOT (4.8 - 8) | 16” DOT (4.8 - 8) |
| Filter | Spin-On Replaceable | Spin-On Replaceable |
| Net/Gross Weight | 440.7/520.1LB (200/236KGS) | 540.1/632.7LB (245.3/287KGS) |
| Package Dimensions | 82.7”×22.4”×24.4” (210×56.9×62cm) | 74.4”×20.5”×32.3” (189×52×82cm) |
| Container Quantity | 80PCS /40’HQ | 65PCS /40’HQ |
