●40-Volt Brushless Motor
This reliable motor is highly efficient providing more torque and longer life than comparable electric brushed motors.
●Up to 1 Hour of Run Time
Reduces user fatigue and improves job site efficiency.
●Push Button Start
Quiet, clean, hassle-free operation with little to no maintenance required.
●Compact Light Weight Design
Low-profile design makes it easier to load heavier logs. It can also store vertically saving 70% more space in your garage.

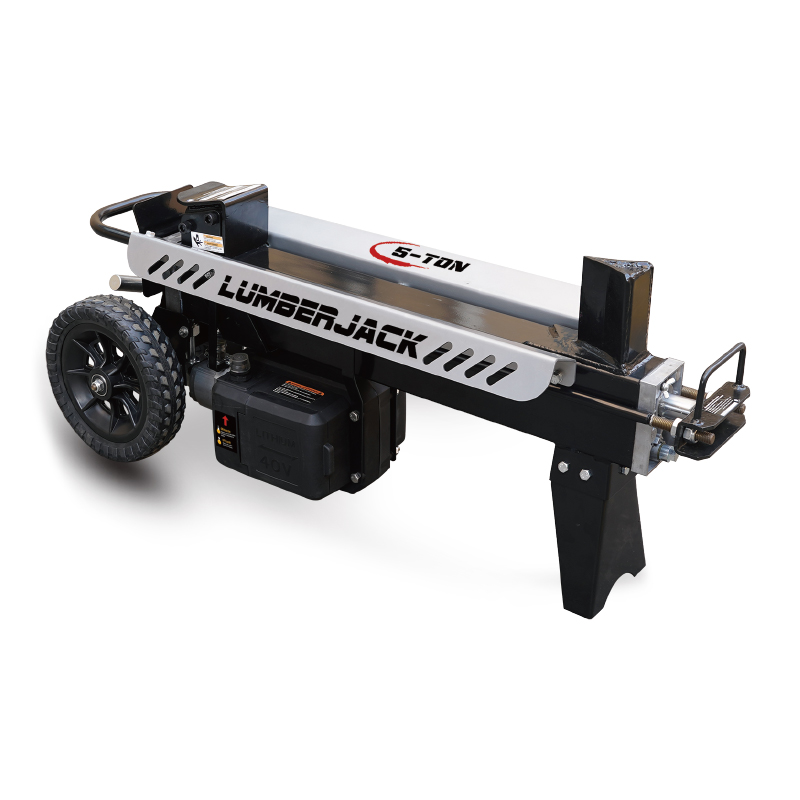

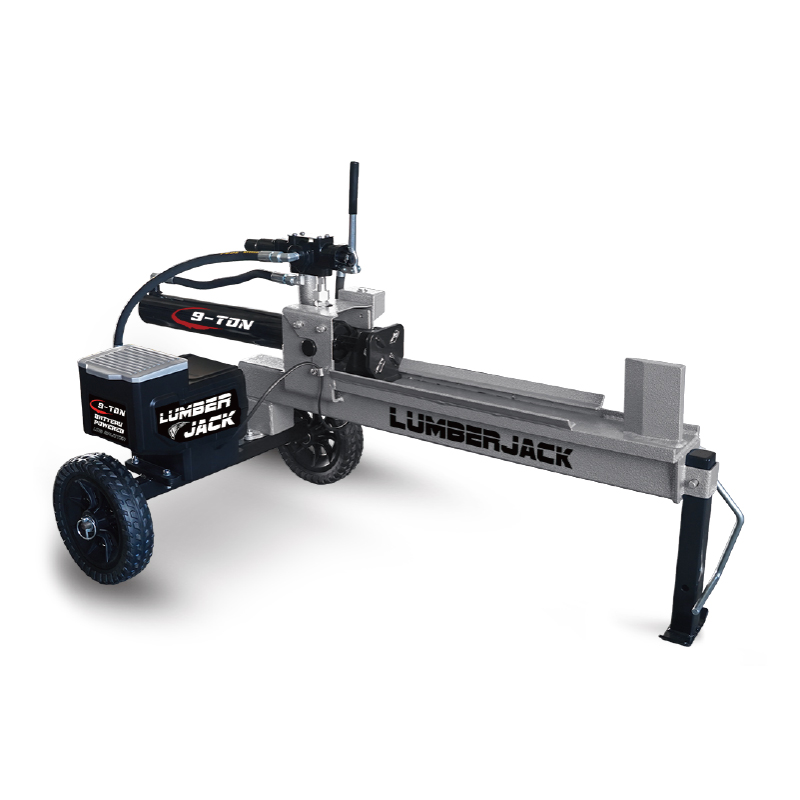

| Model | LSD0500 | LSD0901 |
| Max. Splitting Force | 5Ton | 9Ton |
| Cycle Time | 15s | 11s |
| Brushless Motor / Battery | 40V 1.2KW / 40V 4AH x 1 | 40V 1KW / 20V 10AH x 2 |
| Max. Log Length | 20 inches (508mm) | 19.3 inches (490mm) |
| Hydraulic Capacity | 0.85Gal / 3.2L | 1.32Gal / 5L |
| Wheel | 10” Flat Free Tires | 10” Flat Free Tires |
| Net/Gross Weight | 108.05/125.69LB (49/57KGS) | 145.5/176.4LB (66/80KGS) |
| Package Dimensions | 41.34”x16.14”x18.5”(105x41x47cm) | 45”x21.7”x21.3” (114.5x55x54cm) |
| Container Quantity | 224PCS /40’GP | 168PCS /40’GP |
